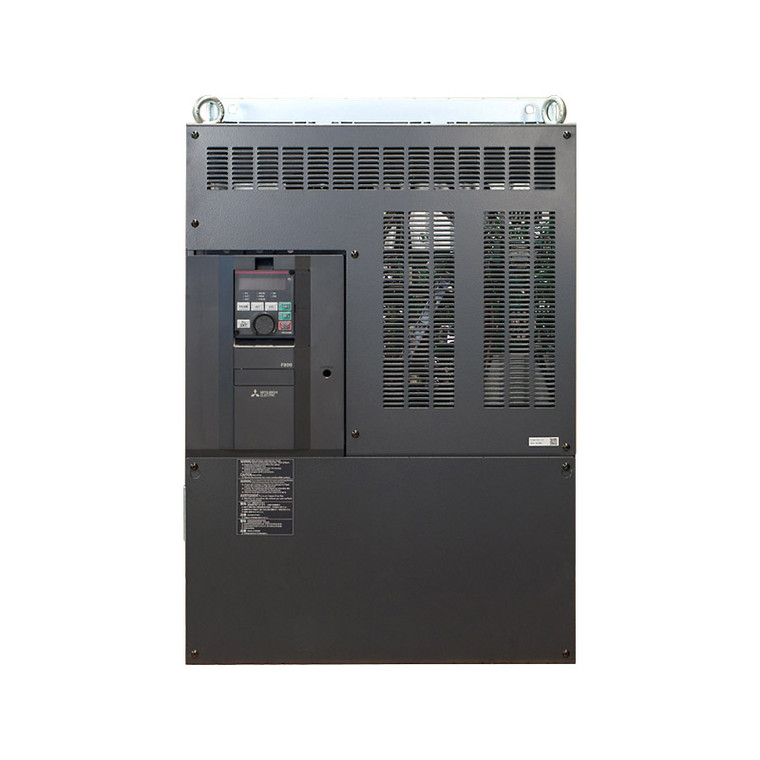

150HP 460V Mitsubishi VFD, INVERTER, AC DRIVE FR-F840-01800-3-60 (FR-F840-01800-3-60)

150HP 460V Mitsubishi VFD, INVERTER, AC DRIVE FR-F840-01800-3-60 (FR-F840-01800-3-60)

Brand:
MITSUBISHI
Model:
FR-F840-01800-3-60
Condition:
New
0 Customer Reviews
VFDs.com Guarantee Badge

Buy Used/ Refurbished Items (Free Shipping + 90 Day Warranty)

There is a newer model of this item:

Out Of Stock
List Price:  $11,213.00
Online Price: $8,970.40
Adding to cart… The item has been added
  • NEMA 1 / UL-1 Rated
  • Built-in Filter
  • Drive to Drive Communications
  • Optimum Excitation Control
  • 3 Programmable Skip Frequencies
  • Drive Settings can be Uploaded or Downloaded
  • Real-time Clock
  • Bi-Directional Coasting Motor Restart
  • Advanced PID Control Features
  • UL-Approved Rating
  • Out-of-Range Warning System
  • Automatic IP Address Detection
  • Remote Operation
Write a Review

Technical Specifications

Model:
FR-F840-01800-3-60
Brand:
MITSUBISHI
Product Condition:
New
HP Rating @ 110% OL:
150 HP
HP Rating @ 120% OL:
100 HP
Amp Rating @ 110% OL:
180 A
Amp Rating @ 120% OL:
144 A
Output Voltage:
460 V
Output Amperage Rating:
180 A
Phase Rating:
3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Three Phase
Horsepower Rating:
100 HP
Horsepower Rating:
150 HP
Rated Amps:
144 A
Rated Voltage:
460 V
Rated Input Frequency:
60 Hz
Enclosure Rating:
IP 00
Series:
F800
Rated Amps:
180 A
Height:
21.67 in
Width:
17.13 in
Depth:
9.84 in

Product Information

MITSUBISHI F800 Series

VT INV 100/150HP (SLD) 480V-CA
Download Manual

Mitsubishi F800 Series Inverter/VFD

The all new Mitsubishi F800 Series VFD is designed for unparalleled drive precision, speed control, powerful startup, and versatility. Mitsubishi Electric focused its massive technological capabilities to develop a new generation of technologies far beyond your wildest expectations. Experience the remarkable F800.

Key Features

  • IP21 and IP55 enclosure options available
  • Built in RS-485 communication, most major communications protocols are supported
  • 24VDC control circuit power supply
  • Partitioned inverter/converter design for optimal solutions
  • Real sensorless vector control ensures faster response
  • Advanced magnetic flux vector control or V/F control
  • Optimum excitation control improves motor efficiency
  • IPM motors reduce energy consumption
