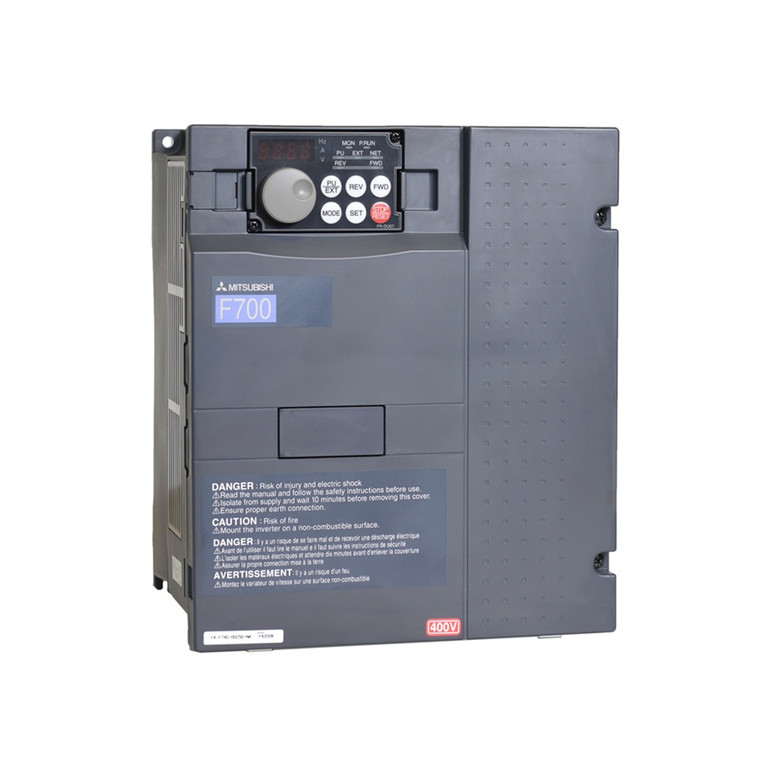

50HP 230V Mitsubishi VFD, Inverter, AC Drive FR-F720-01540-NA
Drive Details
Manufacturer
Mitsubishi
Series
F700
Model
FR-F720-01540-NA
Condition
New Surplus
Constant/Variable Torque
VT
Horse Power
50/60 HP
Maximum Amps
154 A
Input
3-Phase
200-240V 50/60 Hz
Output
3-Phase
200-240V 50/60 Hz
Enclosure
IP00
Dimensions
Height: 21.7 in
Width: 12.8 in
Depth: 7.7 in
The advanced specifications of the F700 optimize 3-phase motor control, saving energy and increasing reliability and safety for virtually all applications.
Key Features Include:
- NEMA 1 UL Type 1 Enclosure Designs: Drive can be mounted as a stand-alone unit where required. (Plenum rated)
- Built-in BACnet MS/TP
- Built-in PLC; programs using GX Developer
- Two I/O cards can be installed simultaneously
- Remote I/O capability: All the drive I/O can be read or controlled over a network
- Includes Removable FR-DU07 control unit with a digital dial that can be used as a speed potentiometer
- Optional FR-PU07-01 keypad can be mounted remotely, display HAND/AUTO, and display the value of three monitors
- Optimum Excitation Control for increased energy savings when motor is not loaded
- 3 user programmable skip frequencies
- Windmill start: Catch a reverse spinning load
- Pre-charge mode
- PID sleep mode
- Second PID function
- Regeneration avoidance
- Standard RS-485 communications
- Mitsubishi or Modbus RTU protocol
- Built-in EMC filter: Conforms to EN61800-3 2nd environmental
- UL Listed for single phase input
Specifications | |
Rated HP | 50HP |
Input Voltage | 230V |
Output Voltage | 230V |
Input Phase | 3-Phase |
Output Phase | 3-Phase |
Rated Amps | 154 A |
Condition | New Surplus |
Enclosure Rating | IP00 |
Series | F700 |
Height | 21.70 in |
Width | 12.80 in |
Depth | 7.70 in |
