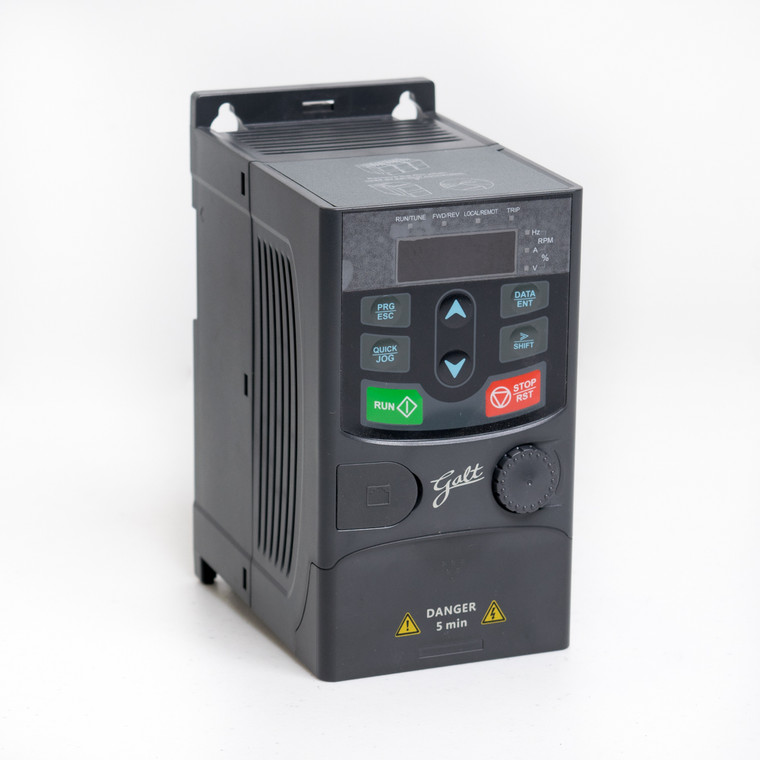

1HP 460V Galt Electric G200 VFD, Inverter, AC Drive G240-00025UL-01
Drive Details
Manufacturer
Galt Electric
Series
G200
Model
G24000025UL01
Condition
New
3 Year Manufacturer Warranty
Constant/Variable Torque
CT/VT
Horsepower?
HO: 1 HP
Maximum Amps?
HO: 2.5 A
Input
3-Phase
380-480V 50Hz/60Hz
Output
3-Phase
380-480V 50Hz/60Hz
Enclosure Rating
IP20
Features
4 Common Digital Inputs
1 High-speed Digital Input
2 User-configurable Analog Inputs
Copy-Paste Keypad Parameters
485 Modbus RTU Communication
Built-in standard keypad
Integrated PID controller
Dimensions
Height: 7.28 in
Width: 3.15 in
Depth: 5.53 in
Overload Rating Guide:
| Rating | Overload | Time Limit | Temperature |
| NO (No Overloading) | 100% | 60 Seconds | 40°C |
| LO (Light Overloading) | 110% Overload | 60 Seconds | 40°C |
| MO (Medium Overloading) | 120% Overload | 60 Seconds | 40°C |
| HO (Heavy Overloading) | 150% Overload | 60 Seconds | 40°C |
| SO (Super Heavy Overloading) | 200% Overload | 60 Seconds | 40°C |
Galt Electric G200 Series
The G200 series is a industrial duty inverter that can be used for a wide range of applications. The G200's air duct design, hardware configuration, and software capabilities all greatly improve the adaptability along with the userfriendlyness.Additionally, the G200 series uses vectorized V/F control technology to deliver excellent performance with little-to-no maintenance.
Highlights
- Air-cooling technology implemented
- Compact design with the option of parallel installation
- External keypad used to change input/output settings easily
- QR Code Display for Additional Parameter Information and Fault Troubleshooting
Standard Features
- DC injection, dynamic, and flux braking
- Modbus Communication protocol standard (Standard 485 communication interface)
- Integrated PID controller
- Open-loop sensorless vector
- Real-time accumulative power consumption display
- Built-in standard keypad
| Specifications | |
| Rated HP | 1HP |
| Input Voltage | 460V |
| Output Voltage | 460V |
| Input Phase | 3-Phase |
| Output Phase | 3-Phase |
| Rated Amps | 2.5 A |
| Condition | New |
| Enclosure Rating | IP20 |
| Series | G200 |
| Height | 7.28 in |
| Width | 3.15 in |
| Depth | 5.53 in |
