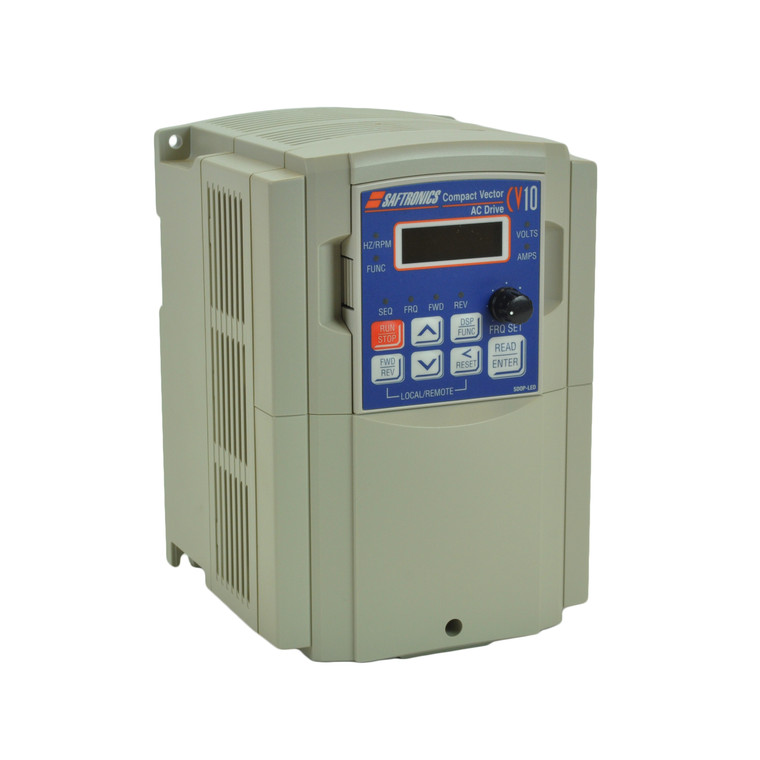

1HP 230V Saftronics VFD, Inverter, AC Drive CV102001-91 (CV102001-91)

Brand:
Saftronics
Model:
CV102001-91
Condition:
New Surplus
0 Customer Reviews
Out Of Stock
Online Price: $169.99
Adding to cart… The item has been added

Technical Specifications

Model:
CV102001-91
Brand:
Saftronics
Product Condition:
New Surplus
Horsepower Rating:
1 HP
HP Rating @ 150% OL:
1 HP
Rated Amps:
4.5 A
Amp Rating @ 150% OL:
4.5 A
Rated Voltage:
230 V
Output Voltage:
230 V
Output Amperage Rating:
4.5 A
Phase Rating:
1 Phase Input - 3 Phase Output
Constant Torque / Variable Torque:
Variable Torque
Phase:
Single Phase
Enclosure Rating:
IP 20
Series:
CV10
Height:
6.42 in
Width:
3.54 in
Depth:
5.79 in

Product Information

Saftronics CV10 Series

The CV10 offers both open sensorless vector control and V/Hz control modes, built-in PLC Smart Relay, motor auto tuning for optimal performance, a user friendly LED keypad with speed potentiometer and built-in Modbus RTU and ASCII.

Standard Features

  • 650Hz Maximum Output Frequency
  • Heavy Duty Rated
  • Overload Protection of 150% for up to 1 minute.
  • 2 to 16Khz Carrier Frequency
  • Built-in Dynamic Braking Transistor
  • Sink or Source Digital Inputs
  • DC Injection Braking
  • 2 or 3 Wire Control
  • 18 Pre-defined V/Hz Patterns
  • Speed Search
  • Auto Torque Boost
  • Stall Prevention
  • Power Loss Ride Through
  • Local/Remote Control
